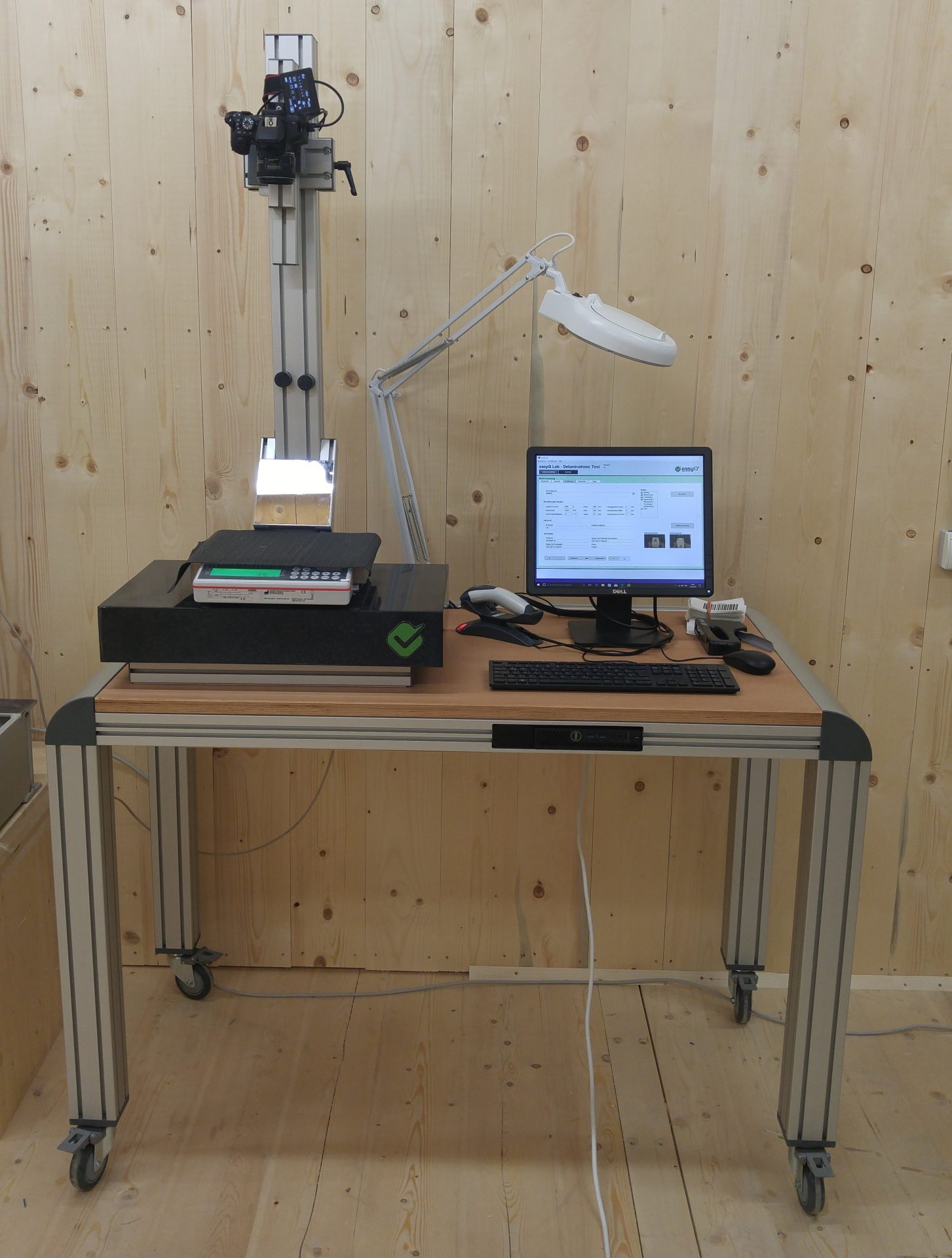

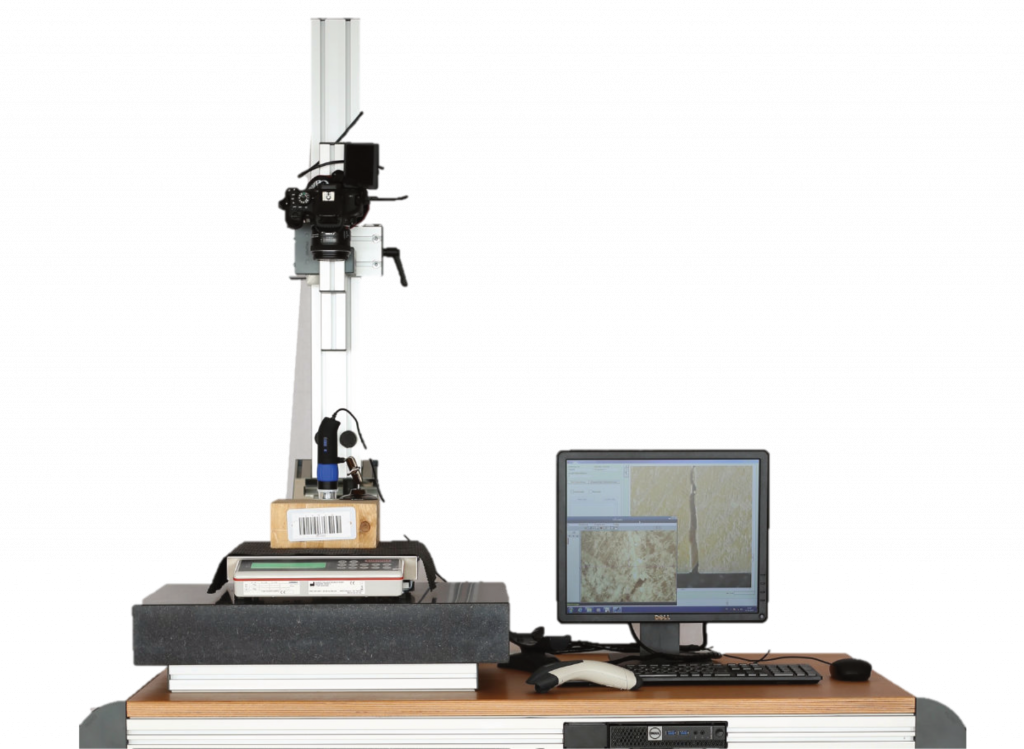

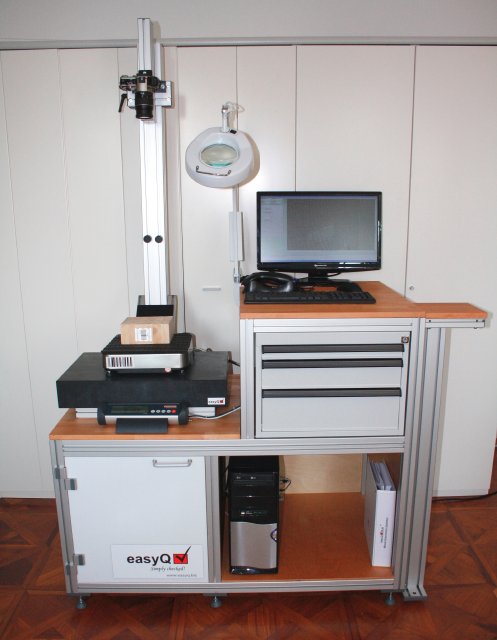

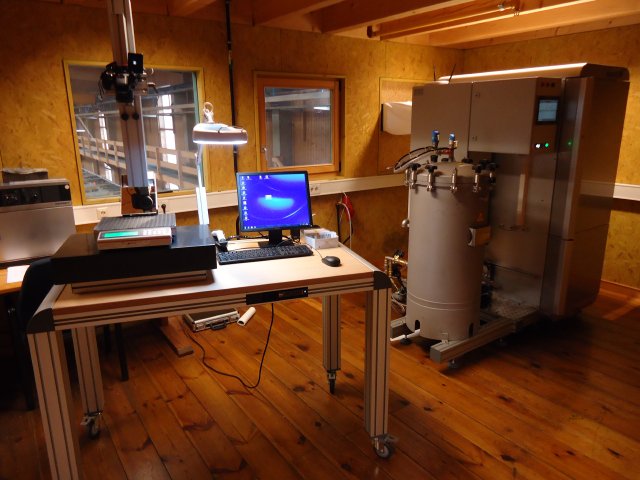

Test stand for evaluation and documentation of delamination samplesComponents: PC with software, online scale, barcode scanner and online camera.Incl. mobile table. Short presentation
Product Highlights
- Professional evaluation & documentation of delamination samples
- Image documentation and archiving
- Barcode/QR sample identification
- Measurement data import from delamination
- High degree of automation
- Extensive reporting
- SQL database
- Glue quantity optimization d. Histograms
Functions
Capture and archive specimen and component data
Acquisition via online connection of scales, barcode, digital camera and keyboard or interface to delamination easyQ-DLA.
Testing

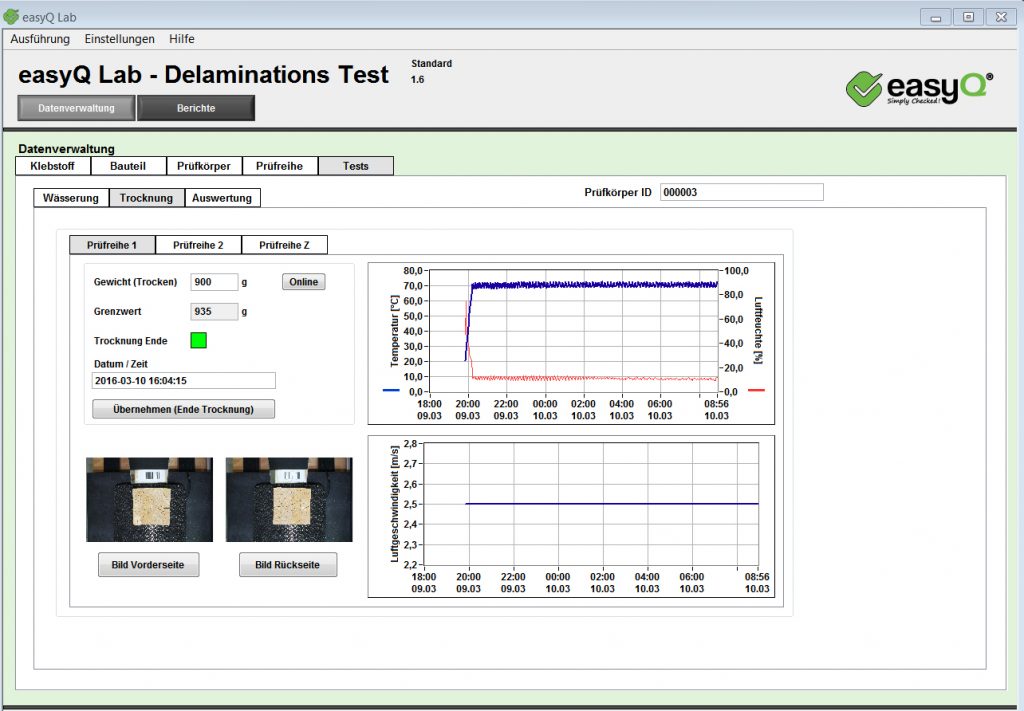

Recording and archiving of test data such as specimen weight, course of soaking and drying, evaluation of delamination. Image documentation of the specimens.
Evaluation of delamination by means of image processing.

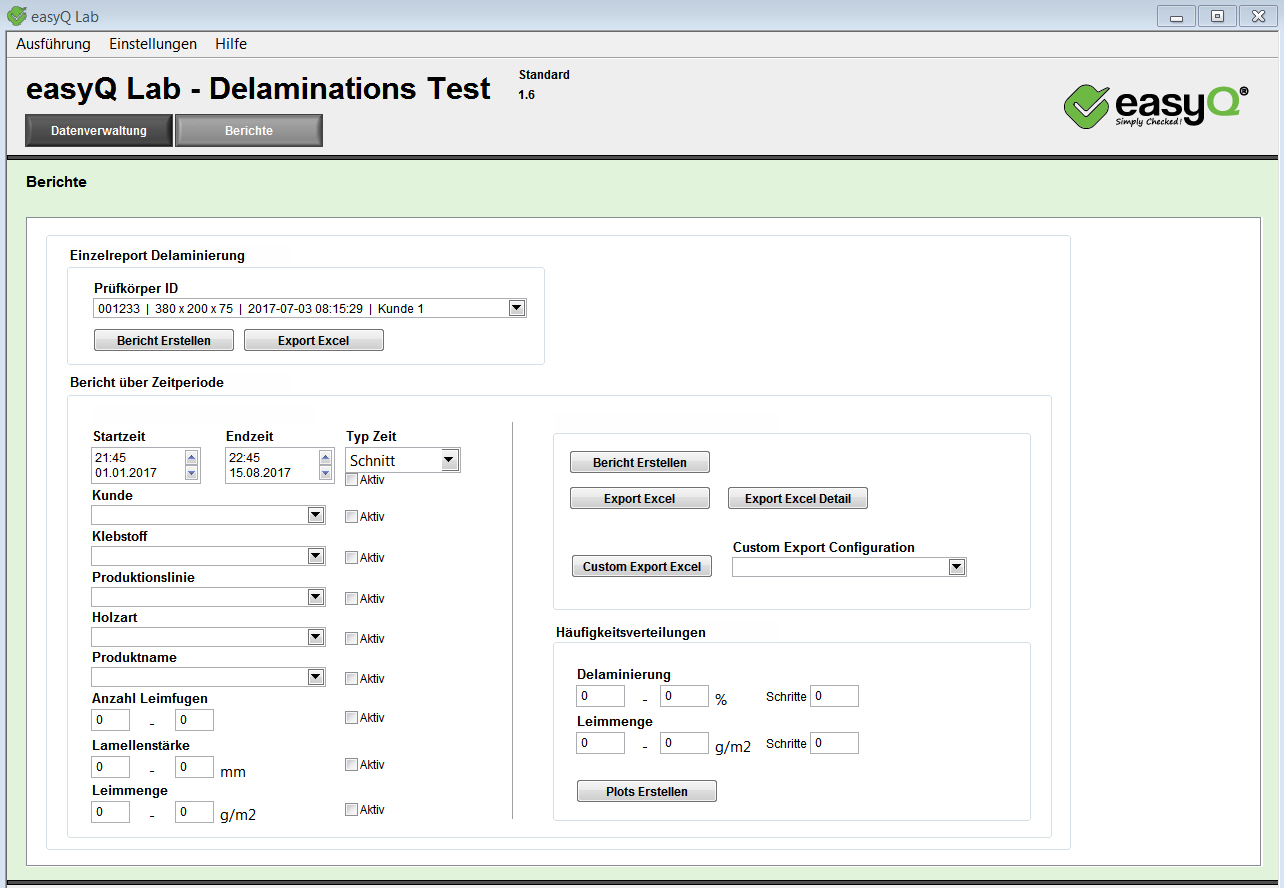

Reports

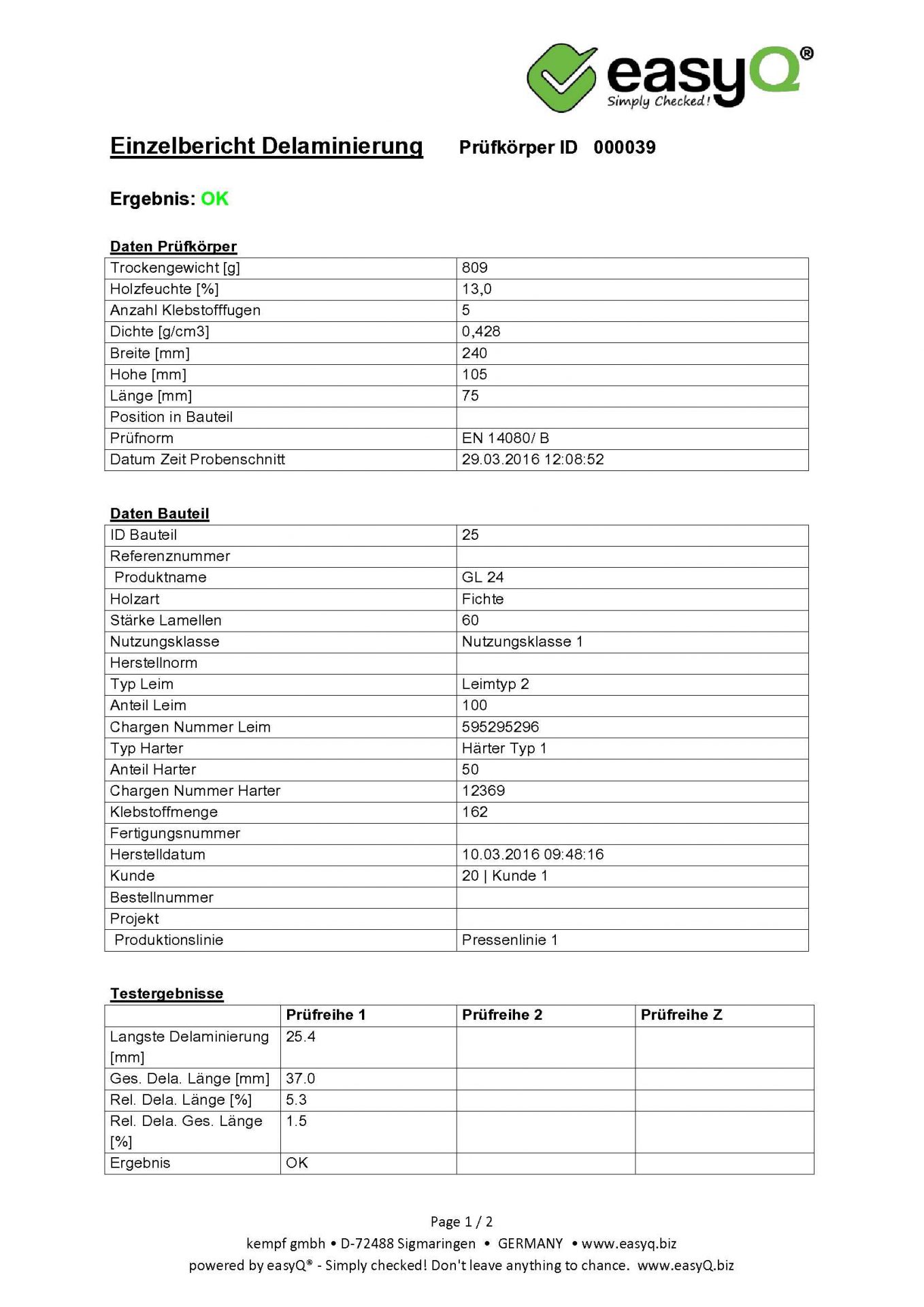

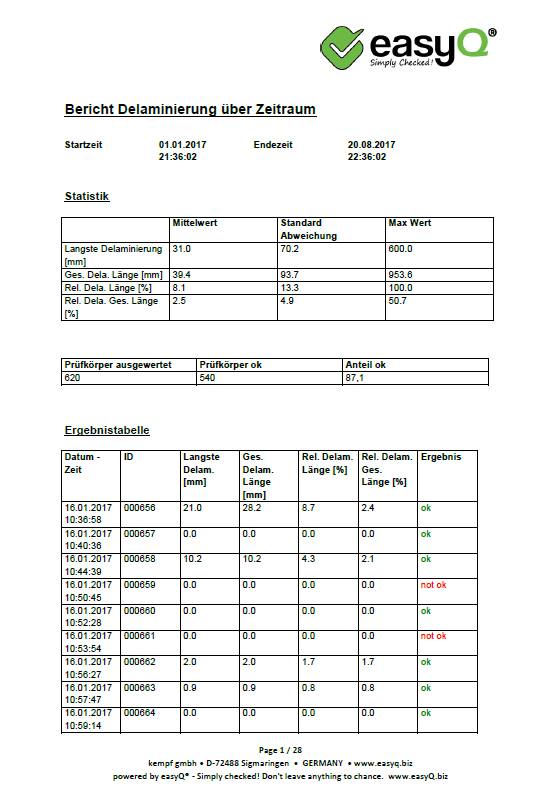

Extensive reports such as individual reports, collective reports over freely definable periods (shift/day/week). Customer reports etc.
Export option to Excel.
Frequency distribution
Glue consumption optimization

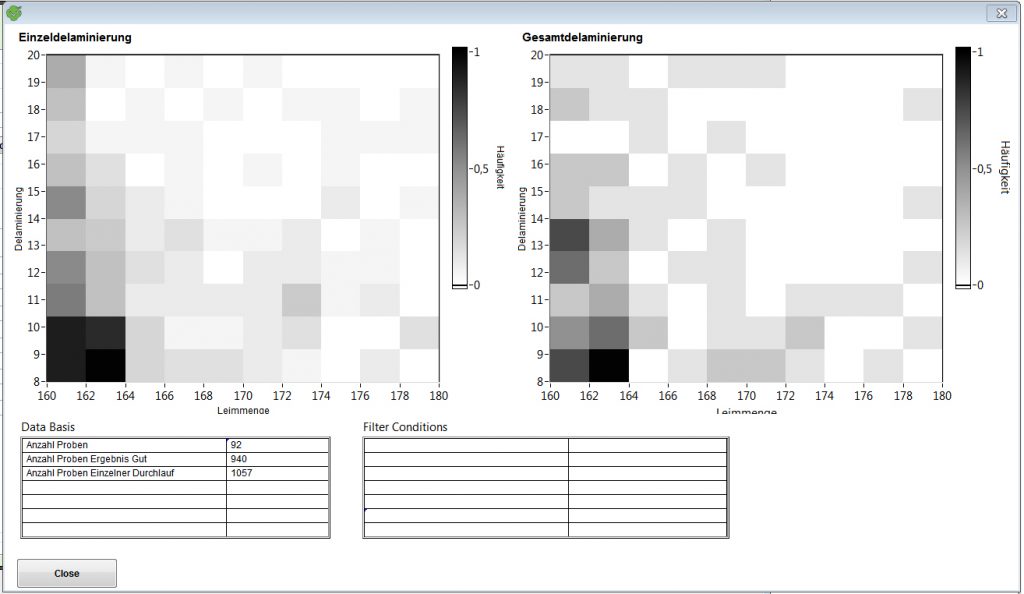

New: 3D histograms for individual and total delamination as a function of glue quantity.
Future versions will include even more value pairs, e.g. surface roughness – delamination.
With Release 1.6, a new function for displaying the frequency distribution of individual and total delamination as a function of the glue quantity has been implemented.
This makes it possible for the first time to specifically examine the delamination results for different glue quantities.
As far as reduction potential exists, this can now be tapped, and the glue quantity can be reduced and observed in a controlled manner.
Further parameter pairs, e.g. surface roughness – delamination, will follow in one of the future software versions.
Prices & Offer
Individual offer
We will be happy to prepare a non-binding offer tailored to your needs.
